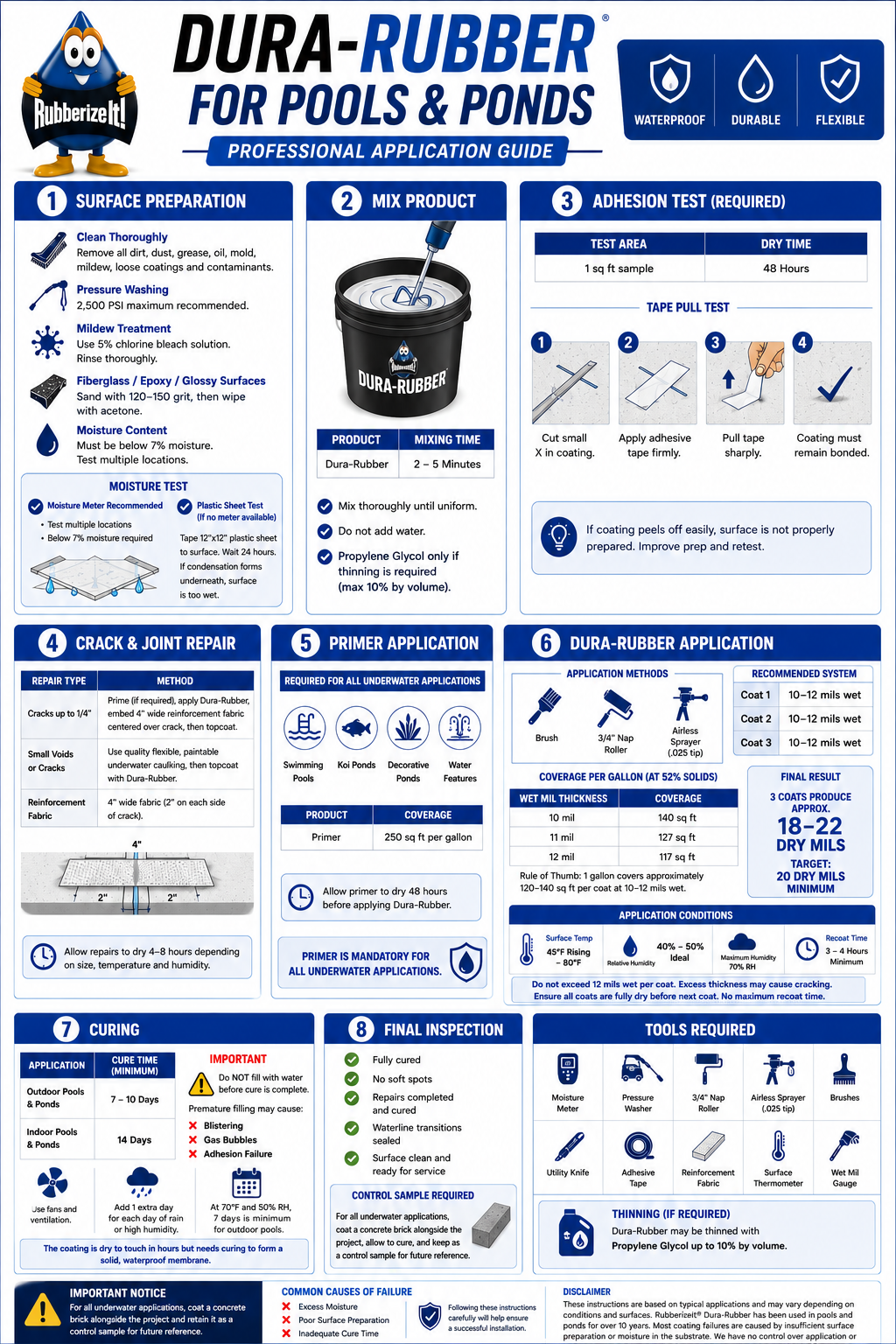

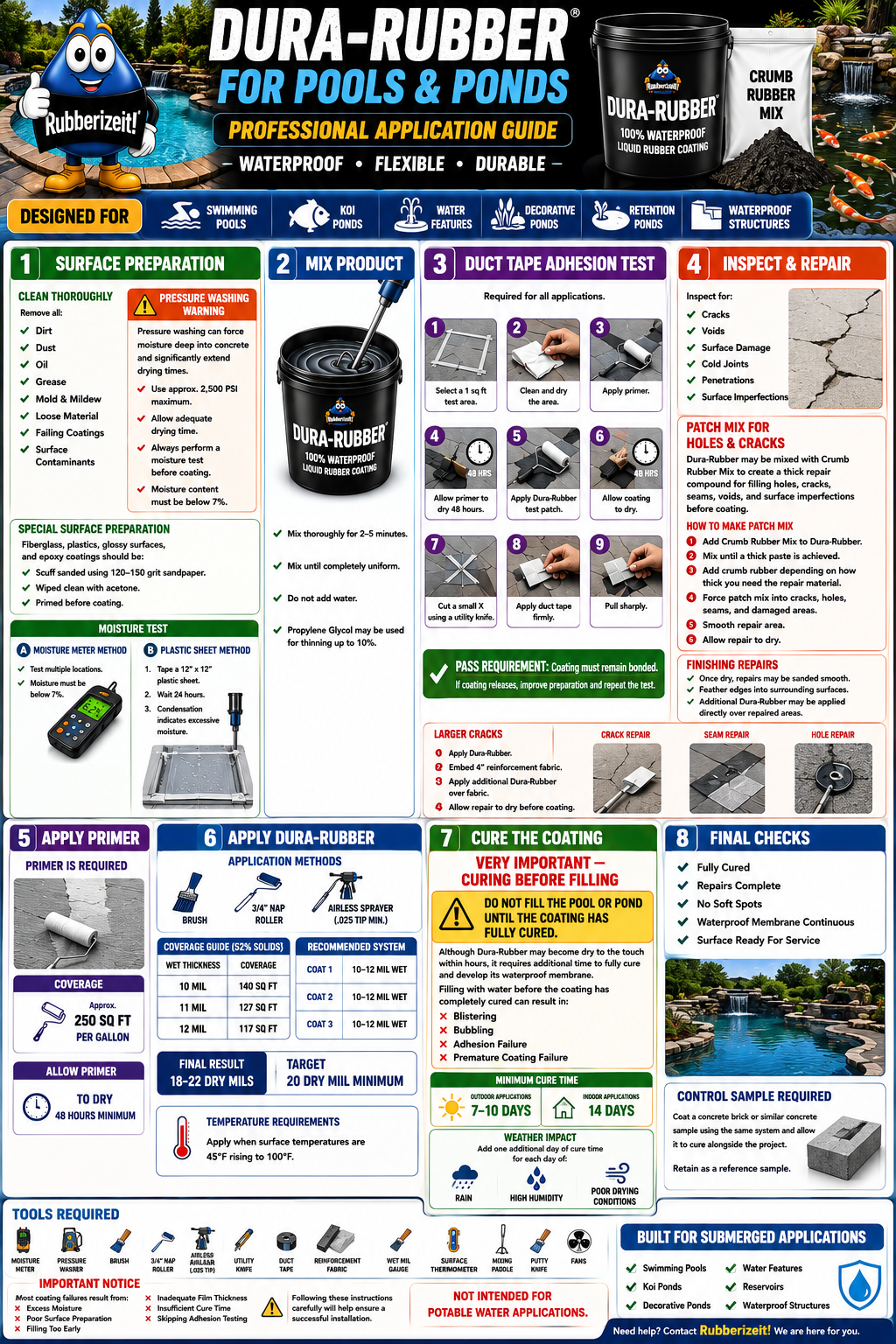

Instructions Pools and Ponds
Proper Preparation Prevents Poor Performance
DURA-RUBBER – POND & POOL APPLICATIONS
Preparation: If going directly over concrete (No other coating on it) make sure the concrete is completely dry. If the concrete is damp to the touch, it is not dry. (Use a fan to move the moisture out of the pond or pool)
Surfaces must be dry and free of anything that could adversely affect the adhesion to the surface.
If going over other products you are required to follow our application instructions as well as the application requirements for additional coats over existing product. It is very important to know the product you are going over.
SURFACE PREPARATION:
Concrete by nature is not only a very porous product but also tends to retain moisture for a long period of time. Although it may look dry on the surface there actually is a lot of moisture still inside. Moisture content depends on the relative humidity. Cure time will depend on water-cement ratio. We recommend using a moisture meter to test the moister content of the concrete. Keep in mind that moisture meters measure the top inch and concrete dries from the top-down moisture levels need to be less than 7%. You must test in multiple locations.
If the concrete is not dry and you apply the dura-rubber you will trap the moisture in the concrete and you will get bubbles this is the moisture trying to escape. Dry means 7% or less moisture in the concrete.
Make sure when you apply, all your membrane terminations must be above the water line and dry.
Surfaces must be dry and free of anything that could adversely affect the adhesion of the Dura-Rubber to the surface. You should be sure to remove all loose, scaling, peeling, blistering, chipping, cracking, chalking or gravel, dust, dirt, sand, soot, grease, oil, uncured tar, wax, soap film, animal fats or petroleum-based residue, coal tar, chlorine, salts, efflorescence, or any other chemically reactive substance; and the surface to be coated must be completely free of all mold, mildew or any other living organism and COMPLETELY DRY OR YOU WILL TRAP WATTER AND GET BUBBLES
High-pressure 2,500 P.S.I. should be used to thoroughly pressure clean all surfaces prior to application when any of the above conditions exist. And the use of an appropriate detergent cleaner. Caution when pressure washing try not to over wash the concrete as you can drive water into the concrete, and it will take longer to dry. Make sure you test the water content with a moister meter in multiple locations.
Mildew and similar growths need to be killed with 5% chlorine solution household bleach in water, followed by a thorough rinse with clean water. All surfaces must then be allowed to THOROUGHLY DRY before proceeding with the application.
After all, surfaces are thoroughly dry inspect for cracks, holes and any surface irregularities that will need to be repaired prior to Spray, or roller/brush Dura-Rubber.
Always do an adhesion test prior to doing full application, you do not need to wait for your order you can do an adhesion test with any quality primer.
The product must be stirred, by hand slowly for 2-5 minutes, not shaken, or aggressively blended prior to use. DO NOT THIN PRODUCT.
Repairing Crack in Concrete or Other Mediums (up to "1/4 cracks or gaps) Repairs should be made with an application of followed by an embedded reinforcement fabric, fabric needs to be at least 4" in width, with 2" each direction from repair at all open joints, seams, cracks, holes, or areas of damage as well as at all penetrations, inside or outside corners and at any pan, or threshold that are determined by specification to be part of the waterproof envelope. Application on new wood, concrete, or ferrous metals should follow the same guidelines as repairs with all seams, joints, imperfections, or penetrations, inside or outside corners, pans, thresholds, or surfaces edges or transitions treated with a coat of, embedded reinforcement cloth and a topcoat of prior to additional coats or final sprayed membrane. This preparation technique will add mil thickness and strength that is in addition to the additional coats or final top-coat - thickness determined by below.
Application Rates:
Rates of Application are typical:
Dura-Rubber 20 mils dry for any concrete, this rate of about 40SF per gallon.
For a 20mil coat, it will take one gallon to get 20mil dry (40sfper gallon). The Dura-Rubber is 60% solids, so if you apply 3ea 10mil coats, you will get 18-20mil dry. The easiest way to do it. If you purchased 4 fives, that is enough to cover 800sf at 20mil, so if your pond has 800sf apply until it is gone. 10mil coats would be about the max per coat you can apply without cracking due to the water in the product escaping during drying. To give you an idea, latex paint for walls goes on at about 1-2 mill per coat about as thick as copy paper. The thickness required will vary depending on the application.
Remember you are not applying a paint you are applying a liquid waterproof membrane that does not breath.
* These mil thickness recommendations are based on proper application and preparation. Deep Drying / Curing times depend on temperature and relative humidity.
Drying times are typical.
Prep coat:
Brushed or rolled will be ready to have cloth embedded while still wet and a topcoat may be applied.
Dura-Rubber can be sprayed with an airless sprayer.
Make sure fabric is totally saturated with rubber and tight to the surface. This would apply to corners seams and patches. this must dry 4-8 hours depending on the size of crack filled, temperature and relative humidity.
Application Coat
Needs to "deep" dry between application coats. This means that because Dura-Rubber is water-based, all water must evaporate out of each application coat prior to the next application coat. Otherwise, the rubber will develop small bubbles of fluid between the coats. If you have small bubbles appearing on your project, you need to wait longer between your application coats. Time to dry between application coats is approximately 3-4 hours - depending on temperature and relative humidity. Apply a maximum of 3 coats at 10 mils each in 24 hours.
We require primer over bare concrete and let dry for 48 hours.
Curing Times
You will notice the product is dry to the touch with-in a few hours and will be waterproof. However, the rubber is still going through a very important process called "Curing" - this is the process where the rubber becomes one single membrane and can contain water on a continuous basis. The process of "Curing" takes 7-10 days.
Do not fill pool before paint has cured. Provide fans and power ventilation while drying. In good drying conditions, (70°F / 50% Relative Humidity) an outdoor pool requires a minimum of 7 days of good weather before refilling the pool. For every day of rainy or high humidity, add one more day to the 7 days. Indoor pools require 2 weeks due to the reduced ventilation and circulation inherent with indoor pools.
You do not want to expose coating to chemicals or continuous water saturation until the curing process is complete.
If you have a question about your specific applications, please do not hesitate to contact us either via the phone, e-mail or our live online support chat. We are here to help!
If the product is not properly cured and you fill with water, you will get little gas bubbles.
Optimal vs. Acceptable Humidity Levels
Optimal relative humidity (RH) levels for exterior applications tend to be in the 40-50% range or lower.
Levels of 70% or greater will "drastically slow drying and curing," but again will not prevent you from applying.
Applying above an RH level of 70% is strongly not recommended. The coating will remain gummy and gel-like until the RH lowers to an acceptable level long enough for it to solidify.
However, because the coating has not been allowed to "level" properly, the texture will remain wavy and otherwise unacceptable.
Temperatures Work with Humidity, Too
One tip is to time your application so that temperatures are on the rise--several hours before the day's peak temperature, which is usually in the late afternoon. High humidity will slow dry time.
You need to build in a head-start by beginning hours before you think it is time to begin:
Even though the temperature was OK at the time of application, the coating can stop coalescing. This permits moisture to get into the uncured paint film allowing certain ingredients to come to the surface when the moisture evaporates, causing surface staining and possible adhesion problems.
Instructions are based on typical applications and can be very based on conditions and surfaces you apply to. Please contact support for additional application help.
Rubberizeit rubber pool coating is a water and airtight product that has been used for pool and ponds for over 10 years. We have no control over the application or any other condition, which could affect the results obtained. It will help eliminate problems by following our instructions completely.
(For underwater applications we require a control sample. This can be done by coating a concert brick with dura-ruber as you coat the substrate let dry and cure retain sample.)
